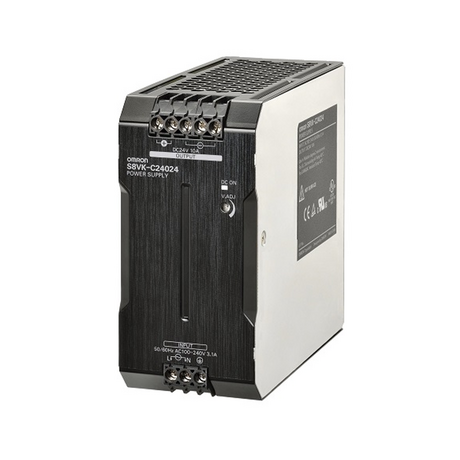

Omron Power Supply S8VK-C24024 10A 24VDC 240W

Omron S8VK-C24024 10A 24VDC 240W power supply has high quality and durability, easy to install. The product is widely used in many industrial applications in automation factories.

Omron S8VK-C24024 power supply is made of simple plastic, commonly mounted on DIN rail. Power supply 100-240VAC (85-264VAC) 50/60Hz, 90-350VDC. Output voltage 24VDC ±10%, no indicator. Multiple power levels to choose from 60, 120, 240, 480W. Overcurrent, short circuit, overvoltage protection, automatic restart. Allows 2 power sources to be connected in series. Blue output status indicator light. Meets electrical safety standards and technical specifications. Simple installation, easy maintenance, designed with long life.

• Power supply: 100-240VAC, 50/60 Hz or 90-350 VDC
• Adjustable output: –10-15% (V.ADJ)
• Output affected by temperature: 0.05%/°C max
• Overload protection: 121-160% rated current
• Parallel function: Yes
• Allows 2 power supplies to be connected in series (with external diode)
• Operating temperature: –40-70 °C
• Immunation in/out: 100 MΩ min. with 500 VDC voltage
