Products information
- Rãnh xoắn 45 độ khi gia công đạt độ bóng cực tốt;
- Dùng cho các máy CNC công nghiệp;
- Khi có nhiều lỗ giao nhau dùng để ba via trên mép;
- Dễ dang tháo lắp, chất liệu bền bỉ.

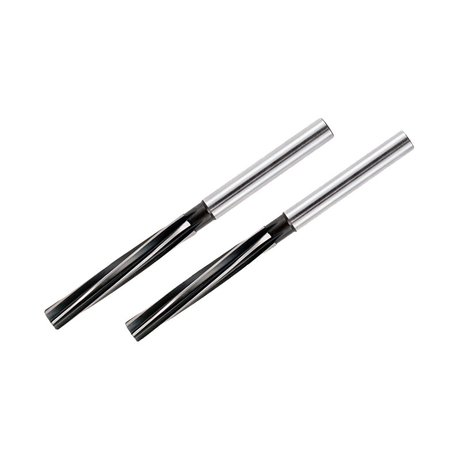

High-speed steel boring machine Ø10.3 OSG 7511030 or commonly known as high-speed steel boring cutter, specialized for CNC processing machines such as lathes, milling machines...
Reaming is a method of fine machining holes after drilling, or after boring, turning with the characteristic that the machined surface coincides with the positioning surface of the cutter, so it cannot correct the relative position deviation left by previous operations.
Reamer is used to drill large holes with low cutting thickness to machine precision holes up to IT5 with high surface gloss.
The machining and cutting process of mui OSG is mainly performed by the chamfered edge of the reamer, the cutting edge produces a hole with the correct circumference, shape accuracy and surface finish.
Reamer OSG boring bar used in CNC machine machining
OSG boring bar 7511030 is made of high-speed steel with 4 main parts: chamfer, guide, neck and reamer shank.
- Chamfer: used to center the hole before cutting and machining.
- Guide: after centering with the chamfer, the reamer will perform cutting
- Neck: the longer this is, the better the ability to increase the depth of boring and cutting.
- Ream shank: for the clamping heads on CNC machines to clamp the reamer to help the reamer work effectively.
Outstanding features of the reamer
