Brand: OSG Sold by: TAT Mall CODE: 2021100007799

Boring machine for high speed steel Ø9.9 OSG 7510990

896.000 ₫/ Cái
1

Shipping information

Shipping address: Q. 1, Hồ Chí Minh
Change
Shipping cost: 0
Đổi trả & bảo hành: 7 ngày miễn phí trả hàng | 100% hàng chính hãng

Products information

  • Rãnh xoắn 45 độ khi gia công đạt độ bóng cực tốt;
  • Dùng cho các máy CNC công nghiệp;
  • Khi có nhiều lỗ giao nhau dùng để ba via trên mép;
  • Dễ dang tháo lắp, chất liệu bền bỉ.
Reaming is a method of finishing holes after drilling, or after boring, turning with the characteristic that the machined surface coincides with the positioning surface of the tool, so it cannot correct the relative position deviation left by previous operations.

High-speed steel boring machine Ø9.9 OSG 7510990 or commonly known as high-speed steel boring cutter, specialized for CNC machining machines such as lathes, milling machines...

Usually used to drill large holes with low cutting thickness to machine precision holes up to IT5 with high surface gloss.

The cutting process of mui-doa OSG is mainly performed by the beveled edge of the boring blade, the cutting blade creates a drilled hole with the correct circumference, shape accuracy and surface gloss.

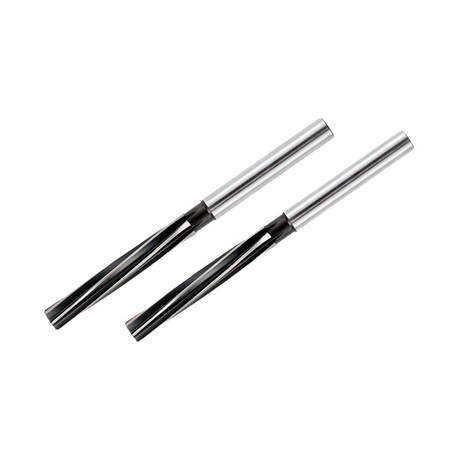

Boring machine for high speed steel Ø9.9 OSG 7510990

OSG reamer used in machining of CNC machines

Boring machine for high speed steel Ø9.9 OSG 7510990 is manufactured by High-speed steel has 4 main parts: the chamfer, the guide, the neck and the reamer shank.

  • The chamfer: used to center the hole before cutting and machining.
  • The guide: after centering with the chamfer, the reamer will perform the cutting
  • The neck: the longer this is, the better the ability to increase the depth for boring and cutting.
  • The reamer shank: so that the clamping heads on CNC machines clamp the reamer to help the reamer work effectively.

OSG reamer structure

Outstanding features of the reamer

View more

Specification
