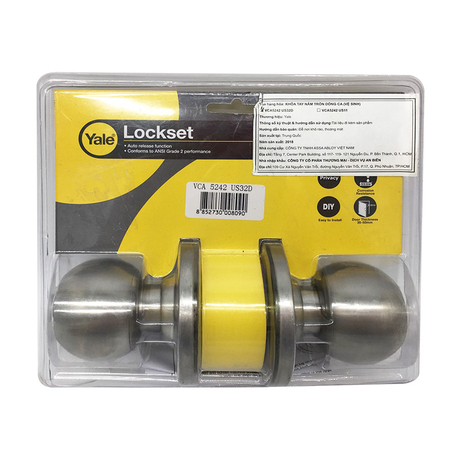

Yale VCA5242US32D Matte Stainless Steel CA Series Round Handle Lock

1. Features of Yale round knob lock

Yale round knob lock VCA5242US32D has a fairly simple structure consisting of 3 main parts including:

+ Two round handles, inside and outside, designed for easy use

+ The lock body is the part that lies entirely in the door frame when the lock is installed, in the shape of a round mortar. This is a very important part that determines the durability, strength and safety of the lock.

+ Backset (lock bolt assembly) is a 60mm part connecting from the lock body to the edge of the door. On the backset there is a beveled bolt used to open the door. Suitable for doors 35mm - 50mm thick

There are also some other details

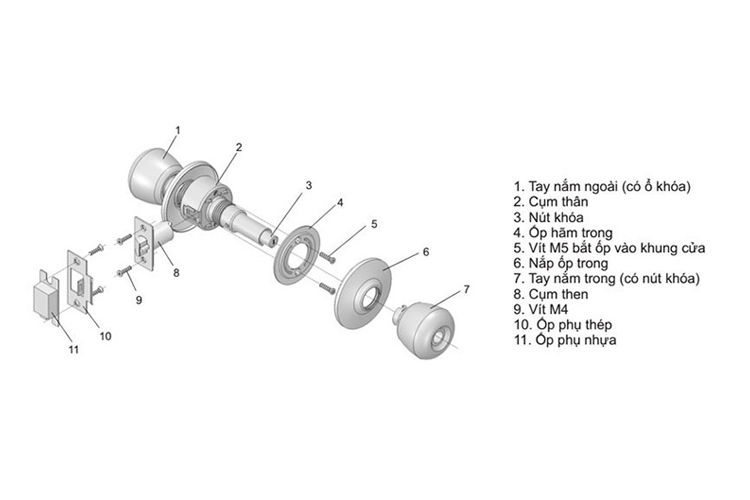

Parts of the Yale VCA5242US32D round handle lock

The use of stainless steel is the main material in the structure of the Yale door lock, helping the product surface to always be shiny, durable and more sturdy than many other materials

Operating principle of the round handle door lock:

Door lock: Press the button Inside, the outer handle will be locked, the locking pin will automatically run into the sub-frame on the door frame.

Unlock: Use the key to turn 45 degrees to the left or right (depending on the locksmith), when the lock is opened, use your hand to turn the handle to pop the locking pin on the frame out, the door is open.

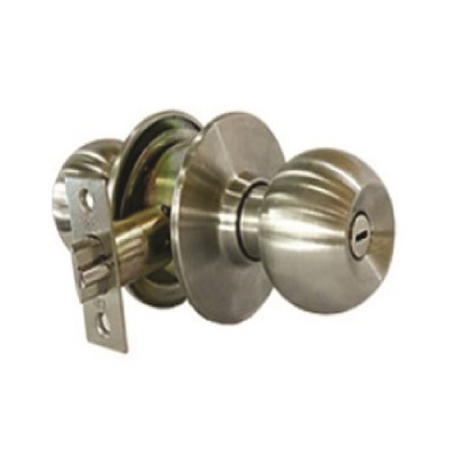

Yale VCA5242US32D Round Handle Lock

2. Advantages of Yale round knob lock

Round knob lock is easy to install, can be combined with many different lock bodies

Helps establish maximum safety and security for your home

Round knob lock has a durability test cycle of 200,000 cycles, meeting ANSI / BHMA A156.2 200 standards to ensure quality and safety when used.

The product is made of 304 stainless steel, has good rust resistance, helps the device not to rust during use, increases the ability to resist the effects of the environment and weather.
