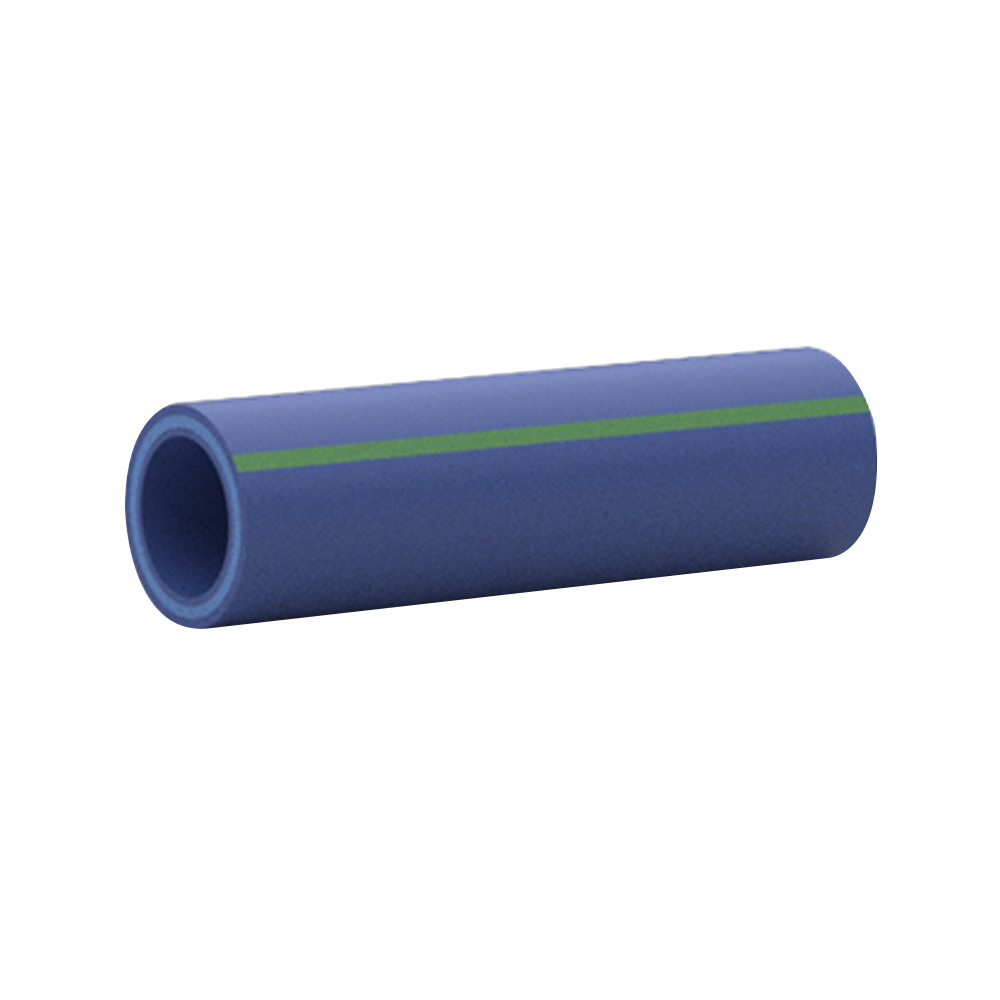

Ống PPR green SDR9 MF RP Ø40x4.5mm Aquatherm A370714

Product Description

Product Name: Aquatherm PPR Green SDR9 MF RP Pipe (Multi-layer, Reduced Pressure)
Model/Code: A370714
Brand: Aquatherm
Material: Made from high-quality Fusiolen PPR-CT (Polypropylene Random Copolymer - Crystalline Structure and Temperature resistance).
Type: A high-performance, multi-layer composite pipe specifically engineered for hot water applications and high-pressure systems.

Key Features and Application

MF RP (Multi-Faser, Reduced Pressure):
- Multi-Faser (MF): The pipe features a proprietary multi-layer construction, typically including a central layer reinforced with fiberglass or composite materials. This significantly reduces thermal expansion (up to 75% less than standard PPR) and increases rigidity.
- Reduced Pressure (RP): Indicates a pipe designed for high-pressure applications (PN16 or PN20).
SDR9 (Standard Dimension Ratio 9): Refers to the ratio of outer diameter to wall thickness. An SDR9 pipe has thicker walls and higher pressure ratings compared to an SDR11 pipe.
Durability: Offers outstanding strength, impact resistance, and a service life of over 50 years under standard operating conditions.
Corrosion Resistance: The plastic material is completely resistant to rust, scaling, and chemical corrosion.
Hygiene: Non-toxic and safe for potable (drinking) water applications; it does not promote bacteria growth.
Application: Widely used in residential, commercial, and industrial settings for hot and cold water distribution, heating systems (radiators, underfloor heating), and industrial fluid transport.

Technical Specifications

Specification	Detail
Model Code	A370714
Outer Diameter	Ø40mm
Wall Thickness	4.5mm
SDR Rating	SDR9
Material	Fusiolen PPR-CT (Multi-layer/Fiber reinforced)
Color	Green (Standard Aquatherm color)
Pressure Rating (PN)	PN20 (Nominal Pressure 20 Bar at 20°C)
Application	Hot and cold water supply, heating systems
