Xe nâng điện EP Model ES12-25DM 1.2 tấn
140.863.000 ₫/ Chiếc
| 1 Chiếc | 140.863.000 ₫/ Chiếc | |
| 2-4 Chiếc | -15% | 120.248.800 ₫/ Chiếc |
| 4+ Chiếc | -20% | 113.337.900 ₫/ Chiếc |
1
Shipping information
Shipping address:
Q. 1, Hồ Chí Minh
Shipping cost:
0 ₫
Đổi trả & bảo hành:
7 ngày miễn phí trả hàng | 100% hàng chính hãng
Products information

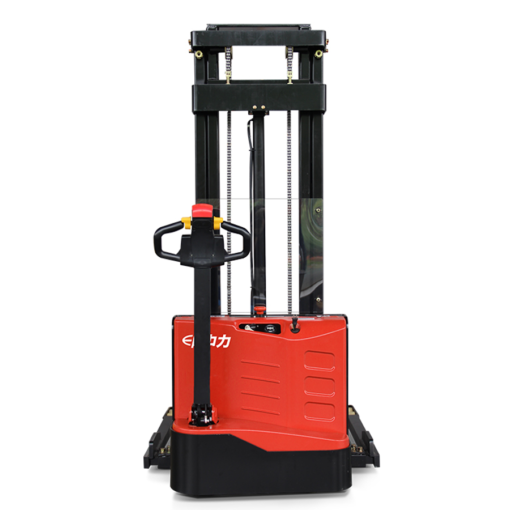

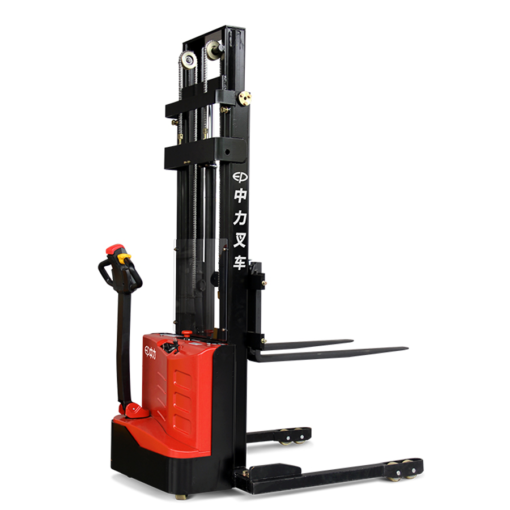

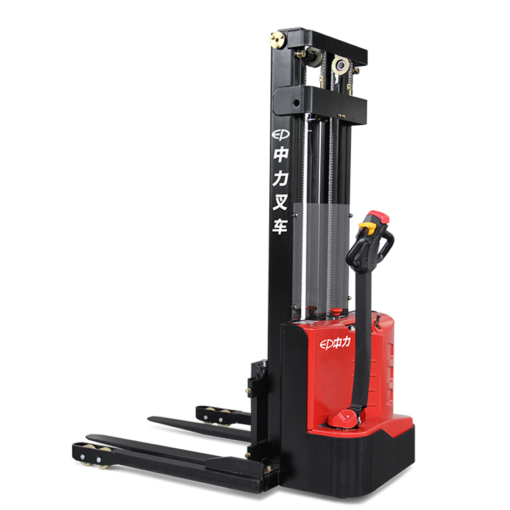

The EP ES12-25DM is a high-performance, fully electric walkie stacker designed for efficient material handling in tight spaces such as narrow aisles, small warehouses, production areas, and retail settings. This model features a straddle leg configuration, making it versatile enough to handle various pallet types, including closed-bottom pallets.
Key Features & Benefits (Tính năng và lợi ích chính)
- Compact Design: Engineered for excellent maneuverability in confined spaces, offering a small turning radius.
- Adjustable Straddle Arms: The adjustable outer support legs provide flexibility to accommodate different pallet widths and sizes, including Australian-style pallets.
- Efficient Power System: Equipped with a 24V gel or AGM maintenance-free battery and a standard onboard charger, allowing the unit to be charged easily via a standard 230V socket.
- Safety First: Includes a range of safety features such as an emergency power disconnect button, a multi-stage lifting limit switch, anti-rolling back braking for ramp safety, and a clear operating display.
- User-Friendly Operation: Features an ergonomic, long-arm tiller head for comfortable steering and enhanced visibility during operation.
- Robust Construction: Utilizes a highly specialized drive and hydraulic system with a low-noise hydraulic unit and high-quality cylinder components for reliability and durability.
Specifications (Thông số kỹ thuật)
| Attribute | Value |
|---|---|
| Model | ES12-25DM |
| Manufacturer | EP Equipment |
| Load Capacity | 1200 kg (1.2 Tons) |
| Operation Type | Walkie Stacker (Pedestrian Operated) |
| Max. Lifting Height | Up to 3570 mm (varies by mast option) |
| Mast Type | Duplex (2-stage) |
| Battery Type | Gel/AGM Maintenance-Free |
| Battery Voltage/Capacity | 24V / 105 Ah |
| Charger | On-board (Standard) |
| Controller Type | Curtis DC Controller |
| Fork Length | 1150 mm |
| Turning Radius | Approx. 1404 mm |
| Wheels | Polyurethane (PU) |
